Casa /Produtos/Bloqueador DC sem escovas/Building Material Shops 2006 Axial Brushless DC Fan 2006 5v 15000RPM YDH2006C05F

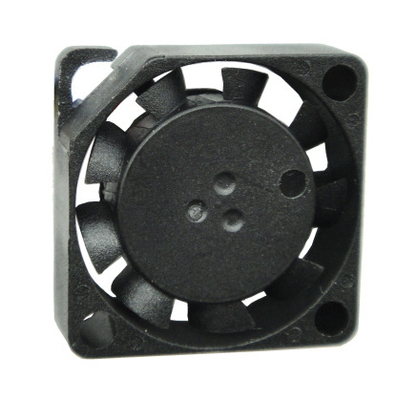

Building Material Shops 2006 Axial Brushless DC Fan 2006 5v 15000RPM YDH2006C05F

1000 Pieces
MOQ
$1.90(1000 - 4999 Pieces) $1.80(>=5000 Pieces)
preço
Building Material Shops 2006 Axial Brushless DC Fan 2006 5v 15000RPM YDH2006C05F
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Type: Axial Flow Fan
Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Home Use
Electric Current Type: DC
Mounting: screw mounting fan
Blade Material: Plastic
Model Number: YDH2006C05F
Voltage: 5v dc
Warranty: 1 Year
After-sales Service Provided: Field maintenance and repair service, Engineers available to service machinery overseas
Item: dc axial fan
Size: 20x20x6mm
Color: Black/White
Usage: air cooling
Material: UL94V-0 PBT plastic
Bearing Type: Cycle seal bearing
warranty: 1-year-warranty
air flow: Low air flow rate
Certificação: CCC, ce, RoHS, UL, ISO9001 ISO14001 CUL
Informação básica
Certificação: CCC, ce, RoHS, UL, ISO9001 ISO14001 CUL
Model Number: YDH2006C05F
Condições de Pagamento e Envio
Packaging Details: carton / pallet packge , 1000pcs in a carton, 6kgs each carton with 20mm Micro Mini Low Flow Rate DC 5volt Fan 2006mm 20x20x6mm 3v 3.3v Axial Flow Fans Dimenssion : 45x35x30cm
Supply Ability: 1000000 Piece/Pieces per Month
Descrição de produto

dc axial brushless 2006 fan 5v 15000RPM YDH2006C05F

Product Description

20mm small fan specifications

Size 20*20*06mm Micro Cooling Fan (Length* Width *Thickness)
Rated Voltage

DC FAN ( 3V 5V 9V )
Main Parameter

Rated Speed: 15000 RPM (At rated Voltage,Measured after 3Mins.)


Air Flow: 0.82 CFM (Maximum In Free Air)


Air Pressure: 3.60 mmAq (Maximum When Air Flow = 0)


Noise Level: 27.75 dBA (At Rated Speed)

Operating Temperature

& Life expantacy

Ball bearing: -30°C to +75°C @ 50000hours at 40°C

Cycle Seal Bearing: -10°C to +70°C @ 40000hours at 40°C

Sleeve bearing: -10°C to +70°C @ 30000hours at 25°C
Optional Function PWM Control / FG Tacho / RD Alarm / Auto-restart / Polarity Protection
Wire & Connector & Tube

Wire length & Connector model ( as required )

20*20*6mm mini axial fan

20*20*6mm mini blower fan

1: Size: L x W x Thickness(We can produce 20mm to 250mm cooling fan)

2: Voltage: DC(3V, 5V, 7V, 9V, 12V, 18V, 24V, 48V...)
AC(100-125v, 220-240v, 380v)

3: Bearing Type: Sleeve Bearing( 30,000 hours in 25℃ operation temperature with 1 year warranty)

CycleSeal Bearing( 40,000 hours in 40℃ operation temperature with 1 year warranty)

4: Parameter: Speed(RPM), Air Flow(CFM), Noise(dBA),

5: Power Joint: Terminal Type
Lead Wire Type (+, -, Tachometer Sensor, Lock Alarm, Speed Control )

6: Dustproof & Waterproof: IP xx(IP 68 is the highest level)

20mm Micro Mini DC 5volt Fan 2006mm 20x20x6mm 3v 3.3v Axial Flow Fans

Company Information

Shenzhen YCCFAN Technology Co.,Ltd

www.yccfan.com

DC Axial Fan (20mm - 172mm) : 3v / 3.3v / 5v / 12v / 18v / 24v / 36v / 48v all voltage aviliable

AC Axial Fan ( 60mm - 200mm) : 110v / 125v / 220v / 240v AC Voltage

DC Blower Fan( 20mm - 120mm) : As required

EC FAN ( 60mm - 120mm) : 110v - 220v both voltage

Founded in 2011,YCCFAN located in Shenzhen of China . 7000M2 plant , 300+ staff , 50000pcs daily capacity.

R&D equipment

Work shop

Prodution equipment

Since 2017,YCCFAN investes own injection factory.

Certificate:

Corporate certificates: ISO9001:2008 , ISO14001:2004 , IATF16949:2016

Product certificated: UL/CUL,CE,RoHS, SGS


Patents: CycleSeal bearing system

Client Recognition: Panasonic,Mitsubishi, Sony GP

factory visiting

We have DC FAN & AC FAN production room, and our QC Group will choose the products

randomly from them and inspect products every day. It totally assure the product quality.

20mm Micro Mini DC 5volt Fan 2006mm 20x20x6mm 3v 3.3v Axial Flow Fans

trade show

Yccfan attend many exhibitions at home and abroad every year.

( HongKong, Guangzhou, Shanghai, South Korea, USA,Germany ,Alaska)

You are warmly welcome to come Yccfan company if you would like to visit our factory.

20mm Micro Mini DC 5volt Fan 2006mm 20x20x6mm 3v 3.3v Axial Flow Fans

Packaging & Shipping

Packing: carton box or as customer's requirements

Shipping:

1. The fan will be delivered by express ( FedEx, DHL, DHl or TNT ) for under 100 kg, our shipping agnet have perfect discount with these express company.

2. Large Measure are shipped by ship or by air as customer's requirements.

3. The fan can be dispatched by our truck driver if your factory is in Shenzhen, Dongguang or Guangzhou City.

20mm Micro Mini DC 5volt Fan 2006mm 20x20x6mm 3v 3.3v Axial Flow Fans

Our Services

1 : Customized Fan

YCCFAN provide cooling solution for cusomter's special product and requirement.

Application industry :

Thanks for all customers support,we will do better.

Panasonic , Sony , Mitsubishi , Fuji , Midea, HYUNDRI,SENSICA, PLANTOWER, KSTAR , INVT ,INFY POWER etc.

2 : Quality Assurance

a : 100 % testing before the fan leave our factory

b. Good after services to every customer

c. Inspection 100% raw material for quality, UL94V-0 plastic are compliance to RoHS SGS standard.

d.Warranty : Two-year for ball bearing fan, one-year for sleeve bearing fan

3 : Good Reputation & After-sales Service

Focus on customer , Grow together, YCCFAN always do the best.

dc axial brushless 2006 fan 5v 15000RPM YDH2006C05F

FAQ
Q1: How to choose a DC fan ?
A1: Consider main point:size,voltage,speed/airflow,lifespan

B1: Consider your product inlet&outlet,choose axial fan or blower fan.
Axial fan blows air along the axis and blades,while blower fan blows air from the fan hole.
Airflow of axial fan is powerful, while static pressure of blower is stronger.


Q2: Can you tell me the normal DC fan Model?

A2: 20*20*6mm 20*20*10mm 25*25*10mm 30*30*7mm

30*30*10mm 40*40*10mm 40*40*20mm 40*40*28mm

50*50*10mm 50*50*15mm 50*50*20mm

60*60*15mm 60*60*25mm 60*60*38mm 70*70*15mm

80*80*15mm 80*80*25mm 80*80*38mm 92*92*25mm 92*92*38mm

120*120*25mm 120*120*38mm

150*150*51mm 172*150*51mm 172*51mm

We have more model,just e-mail me to get details...


Q3: Can YCCFAN make special design fan ?
A3: Sure, just tell me the request deetails, our R&D will provide the solution.


Q4: Can I get samples before order?
A4:Definely,that's our suggestion too.when mass production,performance is compliance to sample checked.
